Electrification compatible products
Axial gap motor
We have developed the axial gap motors with flat shapes, rather than general radial gap motors, they have the advantages of space-saving, lightweight, and high efficiency.
The compact and flat shapes are made by concentrated winding and the 3D structured magnetic powder core.
Highest efficiency of 96% with surface magnet topology and non-magnetic rotor components.
Optimization of fractional slots improves torque ripple.
Design proposals for motor output characteristics and mounting geometry are available to meet your requirements.
Motor Specifications
output category |
3.9kW |
2.1kW |
|---|---|---|
weight |
12kg |
12kg |
peak output |
3.9kW |
2.1kW |
magnet |
NdFeB sintered |
Ferrite |
supply voltage |
48Vdc |
48Vdc |
peak current |
150Arms |
150Arms |
rated output (60min) |
2.2kW |
2.1kW |
peak torque (60sec) |
65Nm |
26.5Nm |
rated torque (60min) |
19Nm |
10Nm |
peak speed |
2,300rpm |
5,000rpm |
base speed |
570rpm |
770rpm |
cooling |
Natural air cooling |
|
inverter |
different individual |
|

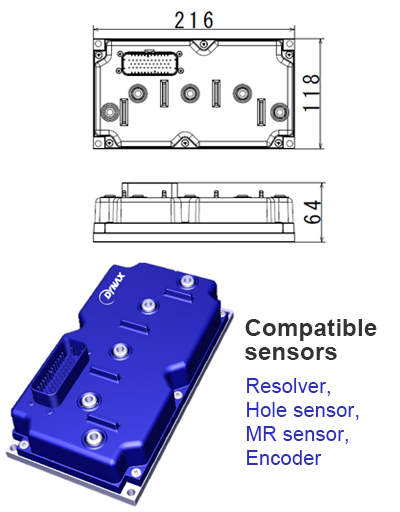

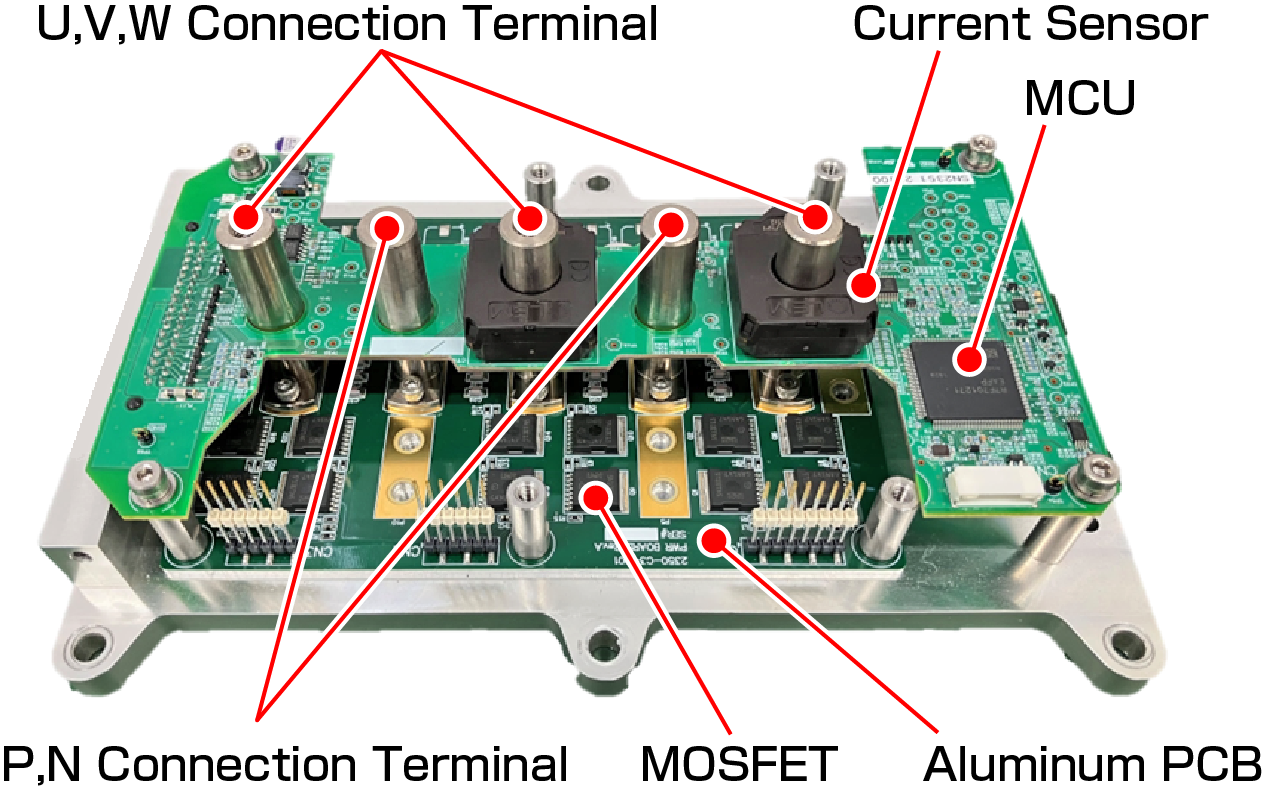

Inverter
By combining with DYNAX motors, we can adjust and propose optimal control
parameters for your application.
Light weight and compact with water proof, dust proof.
Supports a variety of controls and sensors.
Maintenance mode implemented to adjust driving feeling
Specification
Output Category |
Spec |
|---|---|
voltage(V) |
48 |
Max. current (Arms) |
300 (2min) |
Continuous current (Arms) |
150（60min） |
PWM frequency (Hz) |
10k |
Operation temperture (℃) |
-30℃～50℃ |
Cooling method |
Air |
Protection class |
IP65 |
Weight (kg) |
2.0kg |
External interface I/F |
CAN×1 |
Analog Input × 2 |
|
Digital I/O × 4 |
|
High current output × 3 |
